Product Introduction

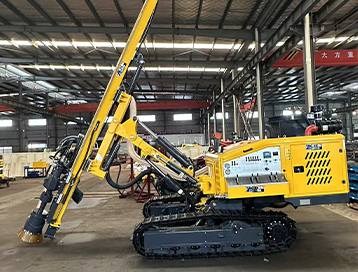

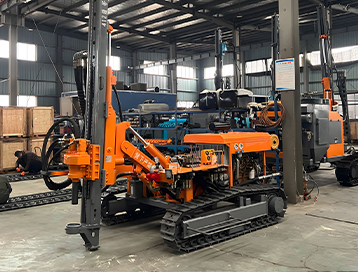

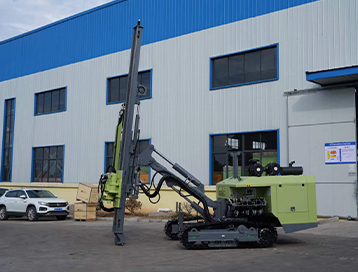

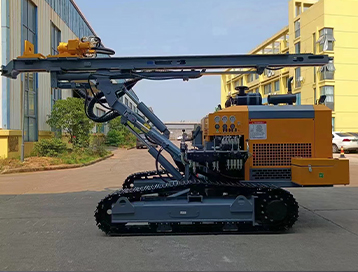

DTH Drilling Rig
Drilling Diameter:
90~350mm
Drilling Depth:
50M
Rotary Torque:
3000 Nm
Rated Power:
60-80KW
DTH（Down-the-hole） drilling rig is a kind of open-pit drilling machine equipped with crawler chassis, which can be divided into separated type (with independent air compressor) and integrated type (built-in air compressor). It is widely used in metallurgy, mining, building materials, railway, water conservancy, national defense construction, earth and stone works, and underwater blasting projects. With fast transfer, high efficiency and stable performance, it is the ideal equipment for drilling blast holes.
Product Parameters
| Model | YGS-150 | YGS-180 | YGS-300 | YGS-412 | YGS-450 |
|---|---|---|---|---|---|
| Total Weight | 3.8T | 6.3T | 6.8T | 8T | 8.7T |
| Walking Speed (km/h) | 2.5 | 2.5 | 2.5 | 2.5 | 3 |
| Power Type | Diesel | Diesel | Diesel | Diesel | Diesel |
| Shipping Size (mm) | 6500×2110×2400 | 6640×1980×2260 | 6600×2110×2500 | 6600×2220×2600 | 7600×2350×2800 |
| Drilling Hole Diameter | 90 - 140mm | 90 - 146mm | 90 - 146mm | 90 - 203mm | 90 - 350mm |
| Drilling Depth | 30m | 30m | 30m | 30m | 40m |
Product Features
Fast Transfer &
High Mobility
Crawler chassis, strong off-road performance, convenient and fast to move between sites.
High Drilling
Efficiency
Stable power head, large torque, fast drilling speed, low fuel consumption.
Wide
Application
Suitable for soil, gravel, rock and various complex geological conditions.
Application Scenarios

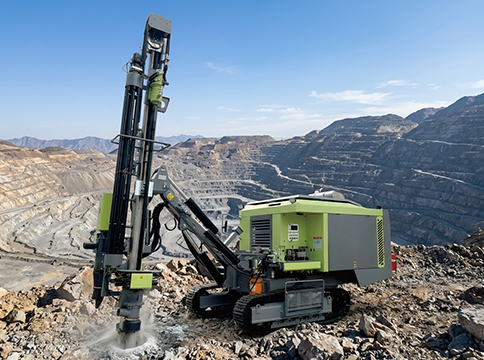

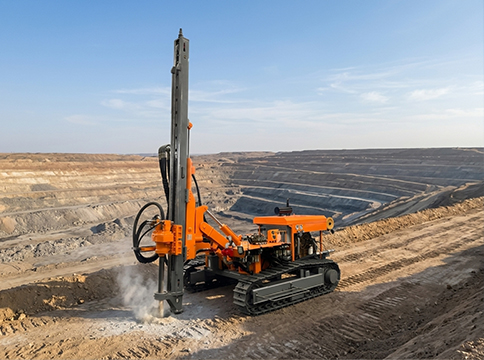

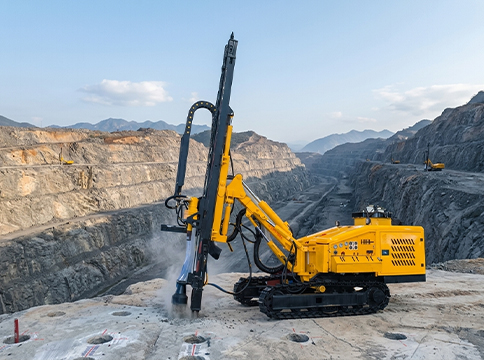

Mining & Quarrying

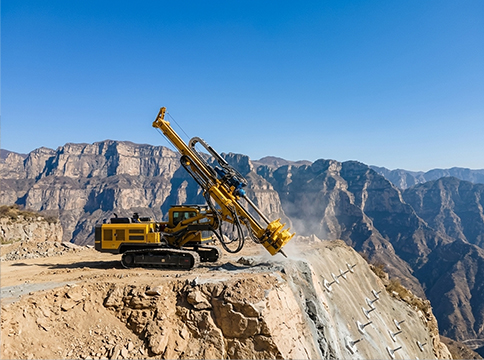

Earthwork Blasting
Hydropower Projects

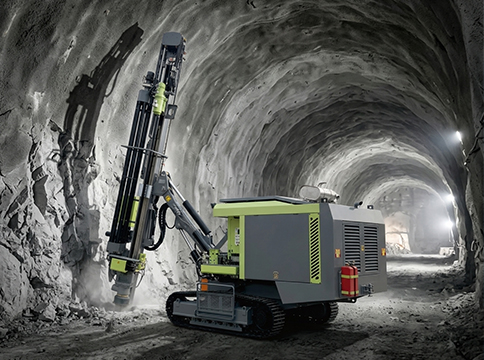

Railway & Highway Construction

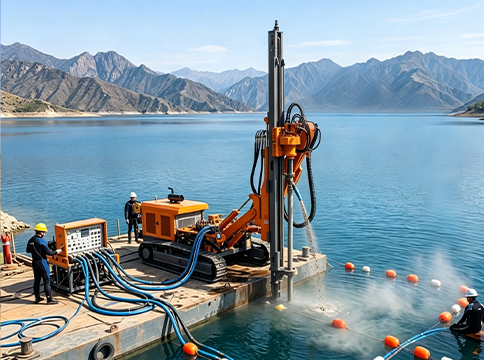

Underwater Blasting
Defense & Military
